รายละเอียดสินค้า:
|
| หมายเลข OE: | W01-M58-8612,4022NP05,1R11-781 | OE NO2: | D11B41,3.229.0033.00,2619V |
|---|---|---|---|
| พิมพ์: | รถบรรทุกแอร์สปริง | ใบสมัคร: | สำหรับรถบรรทุก Air Suspension |
| การบรรจุ: | การบรรจุที่เป็นกลางหรือการบรรจุที่กำหนดเอง | เงื่อนไข: | ใหม่ |
| การรับประกัน: | 1 ปี | จำนวนสั่งซื้อขั้นต่ำ: | 50 ชิ้น |
| การกำหนดค่าการปิดผนึก: | แผ่นปิดจีบ + แผ่นซีลวัลคาไนซ์ | วัสดุ: | ยาง |
| วัสดุลูกสูบ: | พลาสติก | ||
| เน้น: | 1V 8612 truck air spring,Firestone W01-M58-8612 air spring,Goodyear 1R11-781 truck air spring |
||

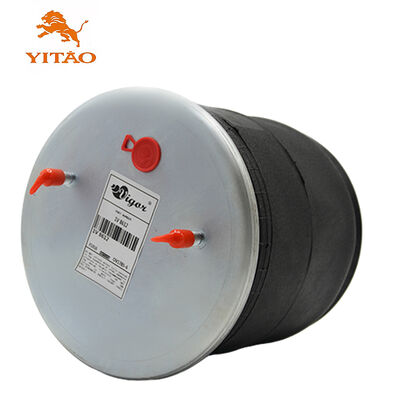

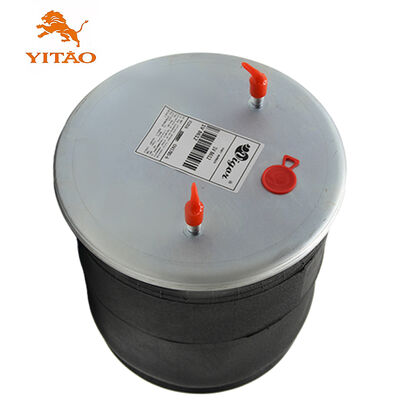

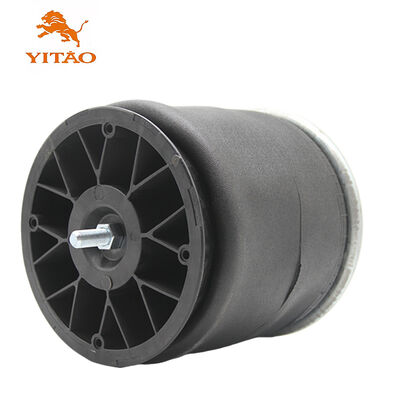

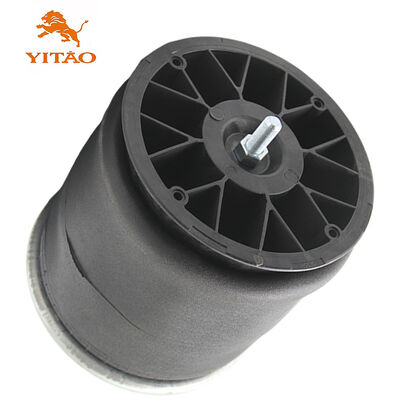

1V 8612 Truck Air Spring manufactured to specifications matching Firestone W01-M58-8612/Goodyear 1R11-781. This air spring fully replaces the original equipment and provides your truck with a comfortable and stable ride.
| Brand | Reference Numbers | Numbering Discrepancy |
|---|---|---|
| Firestone | W01-M58-8612 | W01 M58 8612/W01M588612/W01M58-8612/W01-M588612/W01-M58-8612 |
| Contitech | 4022NP05 | :4022NP05 |
| Goodyear | 1R11-781 | 1R11 781/1R11781/1R11-781 |
| Dunlop FR | D11B41 | :D11B41 |
| SAF | 3.229.0033.00 | 3.229.0033.00 |
| SAF Type | 2619V | :2619V |
| Specifications | Parameters |
|---|---|
| Outer diameter | φ255 |
| Weight | 7.407 kg |
| Package Dimensions | 28*28*37.5kg |
| Natural height | 539mm |
| Maximum height | 516mm |
| Minimum height | 178mm |
| Extended Height | 532mm |
| Compressed Height | 587mm |
| Top Plate Width | 262mm |
| Piston Width | 261mm |
